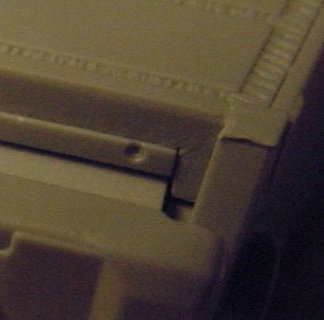

Notches at ends of splash guard
The Dragon kits are the first to include the metal splash guards above the mantlet.
Unfortunately the kits omit the small gap at each end of the guards. This was a design feature and is shown in the German diagrams, which I copy here.
Sources
[1] Factory drawing: Turmgehause 2AKF31861U1B12 (turret front plates)
